Product Features:

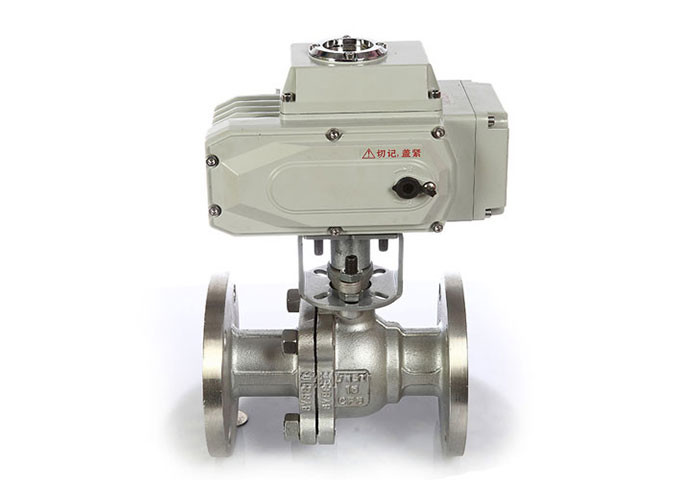

·BLAQ small size electric ball valve uses BL series electric actuator.
·Receiving directly output signal such as 4 ~ 20 mA DC or 1 ~ 5 V DC control signal from computer or industrial instrument, compared the set value according to the valve position feedback signal, to smart actuators interval adjustment (PID), so as to realize the valve accurate positioning, at the same time output 4 ~ 20 mA DC position feedback signal.
·Small volume, light, reliable performance, simple invention, large flow capacity.
·Particularly suitable for thick medium , including particle and fiber properties.
·Widely used in industrial control system such as cement, food, environmental protection, light industry, petroleum, paper making, chemical industry, teaching and scientific research equipment, electric power industries.
Electric Actuator Main Parameters:
Power Supply: DC24V, AC110V, AC220V, AC380V, 50/60Hz;
Input Signal: 4-20mA DC, 1-5V DC (for selected);
Output Signal: 4-20mA DC (for selected);
Environmental Temperature: -25℃~+60℃;
Protection Grade: IP67.
Property Parameter
|
Nominal diameter
(mm)
|
DN15～DN100 |
| Nominal pressure(MPa) |
PN1.6 2.5 4.0 |
| Leakage |
Soft seal:Zero Leakage |
Hard seal:≤ rated flow 10-5 |
| Flow characteristics |
Fast open |
| Applicable temperature |
Seal |
| PTFE≤150℃ RTFE≤180℃ PPL≤300℃ Hard seal≤450℃ |
Main Spare Parts Material
| Spare Parts |
Material |
| Body |
WCB |
ZG1Cr18Ni9Ti |
CF8
(304)
|
CF3
(304L)
|
ZG1Cr18Ni12Mo2Ti |
CF8M
(316)
|
CF3M
(316L)
|
| Ball, Stem |
2Cr13 |
1Cr18Ni9Ti |
0Cr19Ni9
(304)
|
00Cr19Ni11
(304L)
|
1Cr18Ni12Mo2Ti |
0Cr17Ni12Mo2
(316)
|
00Cr17Ni12Mo2
(316L)
|
| Seal |
PTFE,PPL,Para polystyrene, Flexible graphite |
| Applicable medium |
Water, gas, steam, oil, etc |
Corrosion medium such as Nitric acid |
Strong oxidizing medium |
Corrosion medium such as Acetic acid |
Urea and other corrosive medium |
Test Pressure
|
Test Pressure
(MPa)
|
Nominal pressure(MPa) |
| 1.6 |
2.5 |
4.0 |
| Strength |
2.4 |
3.8 |
6.0 |
| Seal |
1.8 |
2.8 |
4.4 |
Dimension
| Nominal diameter |
L |
D |
H |
L1 |
D1 |
b |
n-φd |
H1 |
| Pressure, MPa |
1.6/2.5/4.0 |
1.6/2.5/4.0 |
|
|
1.6/2.5/4.0 |
1.6/2.5/4.0 |
1.6/2.5/4.0 |
|
| DN15 |
130/130/140 |
95 |
275 |
157 |
65 |
14/16/16 |
4-14 |
48 |
| DN20 |
140/140/150 |
105 |
280 |
157 |
75 |
14/16/16 |
4-14 |
53 |
| DN25 |
150/150/165 |
115 |
287 |
157 |
85 |
14/16/16 |
4-14 |
58 |
| DN32 |
165/165/180 |
135 |
354 |
208 |
100 |
16/16/18 |
4-18 |
68 |
| DN40 |
180/180/200 |
145 |
312 |
208 |
110 |
16/16/18 |
4-18 |
73 |
| DN50 |
200/200/220 |
160 |
325 |
208 |
125 |
16/20/20 |
4-18 |
80 |
| DN65 |
220/220/250 |
180 |
335 |
256 |
145 |
18/22/22 |
4-18/8-18/8-18 |
90 |
| DN80 |
250/250/280 |
195 |
365 |
256 |
180 |
20/22/22 |
8-18 |
98 |
| DN100 |
280/280/320 |
215/230/230 |
400 |
256 |
180/190/190 |
20/24/24 |
8-18/8-23/8-23 |
120 |
