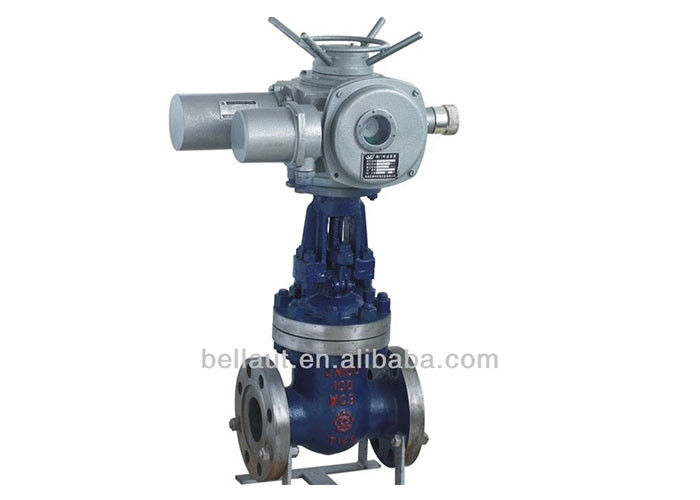

BZ941 Electric Wedge Gate Valve

Product Details:

Place of Origin:	TIANJIN CHINA
Brand Name:	TIANJINBELL
Certification:	ISO9001 CE
Model Number:	Z941H

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	USD 1200-1400 PIECE
Packaging Details:	plywood case
Delivery Time:	15-30 days
Payment Terms:	T/T L/C Paypal Western Union
Supply Ability:	1000 piece per month

Contact Now

Detailed Product Description

Port Size:	DN50-1200 (2"~48")	Application:	General
Material:	Cast Iron, Carbon Steel, Stainless Steel	Temperature Of Media:	-60℃~1100℃ Based On Material
Pressure:	0.6MPa,1.0MPa,1.6MPa,2.5MPa,150Lb,etc	Power:	Electric
Media:	Syrup, Paper Pulp, Sewage, Coal Slurry, Dust, Slag-water Mix	Structure:	Gate
Product Name:	Steam Stainless Steel 4 Inch Water Gate Valve	Face To Face Dimension:	ANSI B16.5,GB/T9113,JB/T79
Bonnet Material:	Cast Iron, Carbon Steel, Stainless Steel	Disc Material:	Carbon Steel Stainless Steel
Stem Material:	Stainless Steel	Seal Material:	Rubber, PTFE, Stainless Steel, Carbide
Leakage Class:	PTFE & Rubber Seal: 0, Metal Seal: 40ml/min/in	Standard Range:	ANSI, JIS, DIN, BS, NF,HG,SH,GB,etc

Product Features:
· It’s a linear motion valve, general match with on-off type Multi-turn actuator.
· Simple operation, is one of the most common on-off valve, which uses gate plate up and down movement to turn on and turn off the fluid medium in the pipe.
·Widely used in electric power, metallurgy, petroleum, chemical, paper, sewage treatment and other industries.

Electric Actuator Main Parameters:
Power Supply: 380V 50Hz (for selected);
Working Environment: Environmental Temperature: -20℃~+60℃; Relative Humity:≤90(25℃)(surrounding air does not have corrosive elements);
Protection Grade: IP55;
Working Duty: Short duty, rated working time is 10 minutes.

Properties

Design Standard	GB/T12234
Body Material	Cast Steel
Operation way	Electric
Packing	Asbestos, flexible graphite
Seal	Alloy steel or hard alloy
Nominal Pressure	PN1.6～2.5MPa
Applicable Medium	Water, Oil, Gas, etc
Applicable Temperature	≤425℃

Dimension

PN1.6MPa(mm)

DN	L	D	D1	D2	b	f	Z×φd	H	Weight, kg
50	250	160	125	100	16	3	4×φ18	653	59
65	265	180	145	120	18	3	4×φ18	665	62
80	280	195	160	135	20	3	8×φ18	725	74
100	300	215	180	155	20	3	8×φ18	787	92
125	325	245	210	185	22	3	8×φ18	902	152
150	350	280	240	210	24	3	8×φ23	955	161
200	400	335	295	265	26	3	12×φ23	1105	219
250	450	405	355	320	30	3	12×φ25	1343	376
300	500	460	410	375	30	4	12×φ25	1516	484
350	550	520	470	435	34	4	16×φ25	1678	695
400	600	580	525	485	36	4	16×φ30	1849	977
450	650	640	585	545	40	4	20×φ30	1937	1033
500	700	705	650	608	44	4	20×φ34	2234	1087
600	800	840	770	718	48	5	20×φ41	2432	1357
700	900	910	840	788	50	5	24×φ41	2489	1481
800	1000	1020	950	898	52	5	24×φ41	2643	1845

PN2.5MPa(mm)

DN	L	D	D1	D2	b	f	Z×φd	H	Weight, kg
50	250	160	125	100	20	3	4×φ18	653	64
65	265	180	145	120	22	3	8×φ18	665	65
80	280	195	160	135	22	3	8×φ18	725	79
100	300	230	190	160	24	3	8×φ23	787	98
125	325	270	220	188	28	3	8×φ25	902	154
150	350	300	250	218	30	3	8×φ25	955	160
200	400	360	310	278	34	3	12×φ25	1105	168
250	450	425	370	332	36	3	12×φ30	1343	390
300	500	485	430	390	40	4	16×φ30	1516	505
350	550	550	490	448	44	4	16×φ34	1678	736
400	600	610	550	505	48	4	16×φ34	1849	1027

PN4.0MPa(mm)

DN	L	D	D1	D2	D6	b	f	f1	Z×φd	H	Weight, kg
50	250	160	125	100	88	20	3	4	4×φ18	665	58
65	280	180	145	120	110	22	3	4	8×φ18	680	68
80	310	195	160	135	121	22	3	4	8×φ18	752	80
100	350	230	190	160	150	24	3	4.5	8×φ23	846	108
125	400	270	220	188	176	28	3	4.5	8×φ25	923	151
150	450	300	250	218	204	30	3	4.5	8×φ25	1087	258
200	550	375	320	282	260	38	3	4.5	12×φ30	1243	366
250	650	445	385	345	313	42	3	4.5	12×φ34	1429	472
300	750	510	450	408	364	46	4	4.5	16×φ34	1608	673
350	850	570	510	465	422	52	4	5	16×φ34	1738	804
400	950	655	585	535	474	58	4	5	16×φ41	1897	1081

PN6.4MPa(mm)

DN	L	D	D1	D2	D6	b	f	f1	Z×φd	H	Weight,kg
50	250	175	135	105	88	26	3	4	4×Φ23	667	68
65	280	200	160	130	110	28	3	4	8×Φ23	685	72
80	310	210	170	140	121	30	3	4	8×Φ23	748	88
100	350	250	200	168	150	32	3	4.5	8×Φ25	845	117
125	400	295	240	202	176	36	3	4.5	8×Φ30	935	158
150	450	340	280	240	204	38	3	4.5	8×Φ34	1090	314
200	550	405	345	300	260	44	3	4.5	12×Φ34	1253	432
250	650	470	400	352	313	48	3	4.5	12×Φ41	1449	595
300	750	530	460	412	364	54	4	4.5	16×Φ41	1867	721
350	850	595	525	475	422	60	4	5	16×Φ41	1931	963
400	950	670	585	525	474	66	4	5	16×Φ48	2017	1129
500	1150	800	705	640	576	70	4	5	20×Φ54	2459	1493

PN10MPa(mm)

DN	L	D	D1	D2	D6	b	f	f1	Z×φd	H	Weight,kg
50	250	195	145	112	88	28	3	4	4×Φ25	781	78
65	280	220	170	138	110	32	3	4	8×Φ25	830	96
80	310	230	180	148	121	34	3	4	8×Φ25	865	126
100	350	265	210	175	150	38	3	4	8×Φ30	1179	134
125	400	310	250	210	176	42	3	4.5	8×Φ34	1190	200
150	450	350	290	250	204	46	3	4.5	12×Φ34	1201	352
200	550	430	360	312	260	54	3	4.5	12×Φ41	1611	484
250	650	500	430	382	313	60	3	4.5	12×Φ41	1903	608
300	750	585	500	442	364	70	4	4.5	16×Φ48	2054	757
350	850	655	560	498	422	76	4	5	16×Φ54	2132	994
400	950	715	620	558	474	80	4	5	16×Φ54	2321	1269

PN16MPa(mm)

DN	L	D	D1	D2	D6	b	f	f1	Z×φd	H	Weight,kg
50	300	215	165	132	95	36	3		8×Φ25	700	250
65	340	245	190	152	110	44	3		8×Φ30	750	250
80	390	260	205	168	130	46	3		8×Φ30	815	250
100	450	300	240	200	160	48	3		8×Φ34	860	-
125	525	355	285	238	190	60	3		8×Φ41	970	-
150	600	390	318	270	205	66	3		12×Φ41	1224	-
200	750	480	400	345	275	78	3		12×Φ48	1490	-

PN20MPa(mm)

DN	L	D	D1	D2	b	f	Z×φd	H	Weight,kg
50	350	210	160	128	40	3	8×Φ27	712	-
65	410	260	203	165	48	3	8×Φ30	765	-
80	470	290	230	190	54	3	8×Φ34	850	-
100	550	360	292	245	66	3	8×Φ41	980	-
125	650	385	318	270	76	3	12×Φ41	1080	-
150	750	440	360	305	82	3	12×Φ48	1240	-
