Place of Origin: | TIANJIN CHINA |
Brand Name: | TIANJIN BELL |
Certification: | ISO9001 CE |
Model Number: | BGTWA |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | USD 500-1000 PIECE |
Packaging Details: | plywood case |
Delivery Time: | 10-20 days |
Payment Terms: | T/T L/C Western Union Paypal |
Supply Ability: | 1000 pieces per month |
Place Of Origin: | Tianjin, China (Mainland) | Model Number: | BGTWA |
---|---|---|---|
Application: | General | Material: | Carbon Steel,Stainless Steel,Cast Iron,etc |
Temperature Of Media: | -40℃~160℃ Based On Seal Material | Pressure: | 0.6,1.0MPa,150lb,etc |
Power: | Pneumatic | Media: | Water, Salt, Acid, Alkali, Nature Gas, Air, Alcohols, Oils, Etc |
Port Size: | DN50-800(2"~32") | Structure: | Butterfly |
Design Standard: | GB/12238 | Connection Flange Dimension: | GB/12221 |
Test & Inspection: | JB/T9092 | Actuator Acting Type: | Single Acting,double Acting |
Additional Parts: | Positioner,limit Switch,handwheel,air Filter Reducer,etc | Standard Range: | ANSI,JIS,DIN,GB,etc |
Color: | Customized | Certificate: | ISO9001 CE |
Standard Or Nonstandard: | Standard |

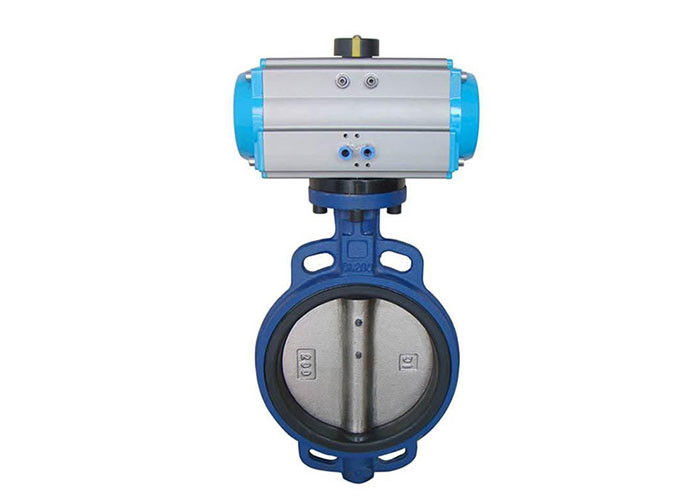

Pneumatic Butterfly Valve Technical Parameters:
1.Pneumatic butterfly valve can be equipped with pneumatic actuator which controlled by solenoid valve, can be used as a cut-off pneumatic butterfly valve, with pneumatic actuators which has positioner can be used
as a regulated type pneumatic butterfly valve.
2.According to user requirements, the pneumatic butterfly valve with pneumatic actuator can be equipped with positioners, air filter reduce pressure regulator, limit switch, hand wheel, solenoid valve.
3.BGTWA Series middle-line wafer type pneumatic butterfly valve,using BGT series pneumatic actuator
4.BAWWA Series pneumatic wafer middle-line butterfly valve,using BAW series pneumatic actuator.
5.The pneumatic control butterfly valve has small size, light weight, reasonable structure, easy installation,
and is suitable for high-volume low-pressure fluid control and regulation of solid powder, closure and so on.
Pneumatic Wafer Butterfly Valve Reference Standard:
Nominal Diameter | DN(mm) | 40~1000 | 50~600 | |
NPS(inch) | 1.5”~40” | 2”~24” | ||
Nominal Pressure PN(MPa) | 1.0 | 1.6 | ||
Test Pressure MPa |
Seal | 1.1 | 1.76 | |
Shell | 1.5 | 2.4 | ||
Applicable temperature ℃ | -15~+150 | |||
Applicable medium |
Fresh water, sewage, sea water, air, steam, food, medicine, Oils, acids, bases, salts |
Pneumatic Wafer Butterfly Valve Main Parts Material:
Body | Disc | Shaft | Rubber Seat | Bushing | ||||
Material Name | Code | Material Name | Code |
Material Name |
Material | Code |
Applicable Temperature℃ |
Material Name |
Gray cast iron | Z |
Plating Ductile iron |
B1 |
Stainless Steel |
NR | X1 | -20~+85 |
Lubricating bronze |
Ductile Iron | Q |
Aluminum bronze |
B2 |
Carbon Steel |
Hypalon | X2 | -18~+135 | PTFE |
Aluminum bronze | T | Stainless Steel | B3 | EPR | X3 | -45~+135 | ||
ZG1Cr18Ni9Ti Stainless Steel |
P | Titanium steel | B4 | Neoprene | X4 | -7~+93 | ||
CF8M Stainless Steel |
R |
CF8M Stainless Steel |
B5 | NBR | X5 | -12~+82 | ||
Carbon Steel | C | Carbon Steel | B6 | Wear rubber | X6 | -10~+50 | ||
CF8 Stainless Steel |
B7 | Vition | X7 | -23~+150 | ||||
Resistant EPDM |
X9 | -20~+150 | ||||||
PTFE | F4 | +10~+150 |
